## Implicit Runge Kutta method.

The OdeImplicitRungeKutta5 class solves an initial-value problem for stiff ordinary differential equations using the implicit Runge Kutta method of order 5.

In this example the OdeImplicitRungeKutta5 class is used to solve the ODEs for a kinetic model:

```              a1       a2
S0 <---> S1 <---> S2
b1       b2
The differential equations are:
y0' = -y0 * a1 + y1 * b1;
y1' = -y1 * (b1 + a2) + y0 * a1 + y2 * b2;
y2' = -y2 * b2 + y1 * a2;
where
a1 = 0.01* Exp(0.7 * voltage / 25)
a2 = 0.01* Exp(0.4 * voltage / 25)

```

#### C# Code

`using System;`
`using System.Collections.Generic;`
`using System.Windows.Forms;`
` `
`using DotNumerics.ODE;`
` `
`namespace DotNumericsDemo.DifferentialEquations`
`{`
`    public partial class ImplicitRungeKutta5 : Form`
`    {`
` `
`        private OdeImplicitRungeKutta5 implicitRK5 = new OdeImplicitRungeKutta5();`
`        private double[] t = new double[1001];`
`        private double[] v = new double[1001];`
`        private double[] S0 = new double[1001];`
`        private double[] S1 = new double[1001];`
`        private double[] S2 = new double[1001];`
` `
`        private int solIndex = 0;`
`        private double voltage = 0;`
` `
`        private double voltage1 = 50;`
`        private double voltage2 = -150;`
`        private double voltage3 = 50;`
` `
`        private void Solve()`
`        {`
`            OdeFunction fun = new OdeFunction(ODEs);`
`            OdeSolution sol = new OdeSolution(OdeSol);`
`            this.implicitRK5.InitializeODEs(fun, 3);`
`            solIndex = 0;`
`            double[] y0 = new double[3];`
` `
`            //Solve for voltage1`
`            y0[0] = 1;`
`            y0[1] = 0;`
`            y0[2] = 0;`
`            this.voltage = this.voltage1;`
`            this.implicitRK5.Solve(y0, 0, 1, 300, sol);`
` `
`            //Solve for voltage2`
`            y0[0] = this.S0[300];`
`            y0[1] = this.S1[300];`
`            y0[2] = this.S2[300];`
`            this.voltage = this.voltage2;`
`            this.implicitRK5.Solve(y0, 301, 1, 700, sol);`
` `
`            //Solve for voltage3`
`            y0[0] = this.S0[700];`
`            y0[1] = this.S1[700];`
`            y0[2] = this.S2[700];`
`            this.voltage = this.voltage3;`
`            this.implicitRK5.Solve(y0, 701, 1, 1000, sol);`
` `
`        }`
` `
`        //      a1       a2`
`        // S0 <---> S1 <---> S2`
`        //      b1       b2`
`        //Differential equations:`
`        //            y'0 = -y0 * a1 + y1 * b1;`
`        //            y'1 = -y1 * (b1 + a2) + y0 * a1 + y2 * b2;`
`        //            y'2 = -y2 * b2 + y1 * a2;`
`        //where`
`        //        a1 = 0.01* Exp(0.7 * voltage / 25)`
`        //        a2 = 0.01* Exp(0.4 * voltage / 25)`
`        double[] yprime = new double[3];`
`        private double[] ODEs(double t, double[] y)`
`        {`
`            double a1 = 0.01 * Math.Exp(0.7 * this.voltage / 25);`
`            double a2 = 0.01 * Math.Exp(0.4 * this.voltage / 25);`
` `
`            double b1 = 0.001 * Math.Exp(-0.7 * this.voltage / 25);`
`            double b2 = 0.001 * Math.Exp(-0.4 * this.voltage / 25);`
` `
`            yprime[0] = -y[0] * a1 + y[1] * b1;`
`            yprime[1] = -y[1] * (b1 + a2) + y[0] * a1 + y[2] * b2;`
`            yprime[2] = -y[2] * b2 + y[1] * a2;`
` `
`            return this.yprime;`
`        }`
` `
`        //Save the solution`
`        private void OdeSol(double t, double[] y)`
`        {`
`            this.t[solIndex] = t;`
`            this.v[solIndex] = voltage;`
`            this.S0[solIndex] = y[0];`
`            this.S1[solIndex] = y[1];`
`            this.S2[solIndex] = y[2];`
`            solIndex++;`
`        }`
`    }`
`}`

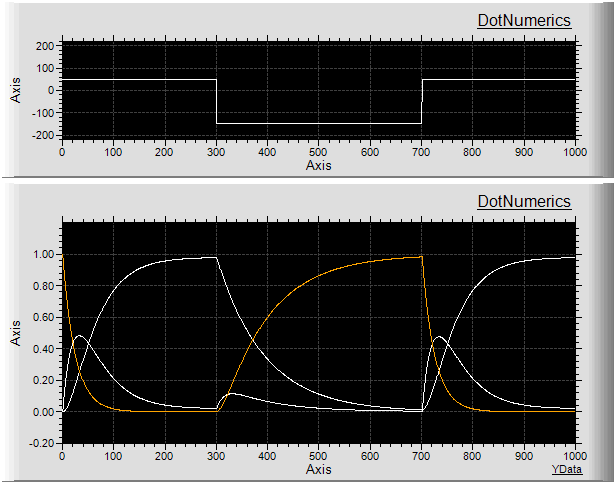

#### Solution
